CompX National Pedestal Locking System

Sku: D8951
Pedestal Locking System main image CompX National D8951 Pedestal Locking System - Gallery Image CompX National D8951 Pedestal Locking System - Gallery Image #2 CompX National D8951 Pedestal Locking System - Gallery Image #3
Pedestal Locking System main image
Pedestal Locking System - Bright Brass - Keyed Differently Details
KEYED DIFFERENT(KD) = EACH LOCK WILL BE A DIFFERENT LOCK NUMBER.
Pedestal Locking System - Bright Brass - Keyed Differently

Price: $38.47

Hurry! Only 3 left in stock.

SKU: D8951-KD-3

SKU: D8951
Product Description
  • APPLICATION – For multiple drawer locking of wood desk pedestal only or mobile pedestal unit. Bar lock is installed in top drawer. For inside case width up to 15-1/2". Please click on thumbnail at left to see greater detail.
  • OPERATION – Locking the top drawer rotates rod with attached flags which pivot into path of drawer mounted stops preventing opening of lower drawers.
  • KEYING – Will key together with all other disc tumbler locks using RO3 (CompX National MPN D8785) key blank. Master keying to E41A (CompX MPN D8799) using RO7 (CompX National MPN D8783) key blank.

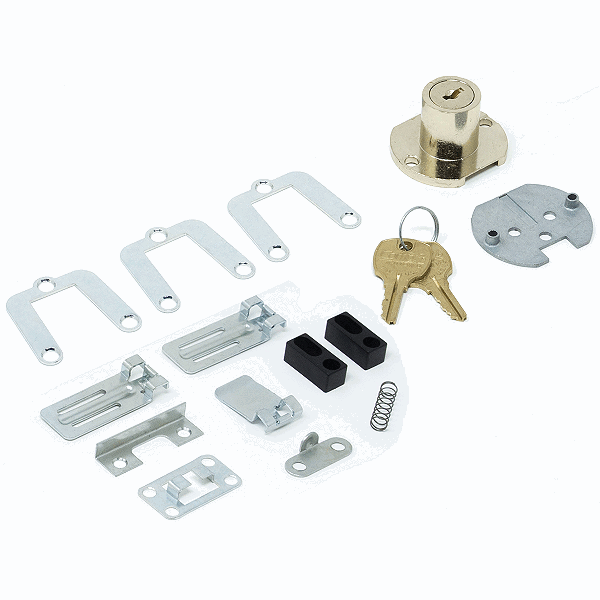

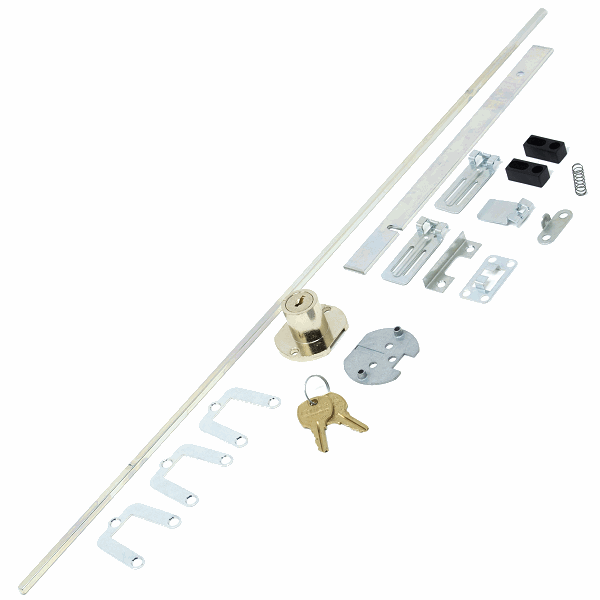

  • PACKAGING – Supplied with two keys and all components shown and necessary mounting screws.

D8951 Instruction Sheet
