CompX National Side Mounted Drawer Gang Lock - SKU: D8840

CLICK BELOW TO SEE LARGER IMAGE
  • compxnational_C2018_trim_ring_gallery

CompX National Side Mounted Drawer Gang Lock

D8840

  • APPLICATION – For locking drawers in desk pedestals and other multiple drawer applications. Lock mounts on inside of unit. Surface mounted. Requires 21/32" diameter hole for cylinder.

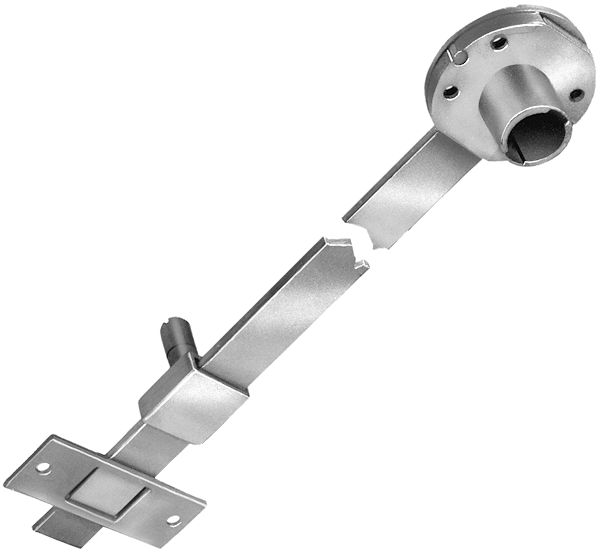

  • OPERATION – Turning the key locks all drawers simultaneously (drawers must be in closed position). Bar moves studs from above or below the plastic stops, which are mounted on drawer sides, thus preventing drawer movement.
  • KEYING – Uses C8850 RemovaCore Lock Cores - order separately.

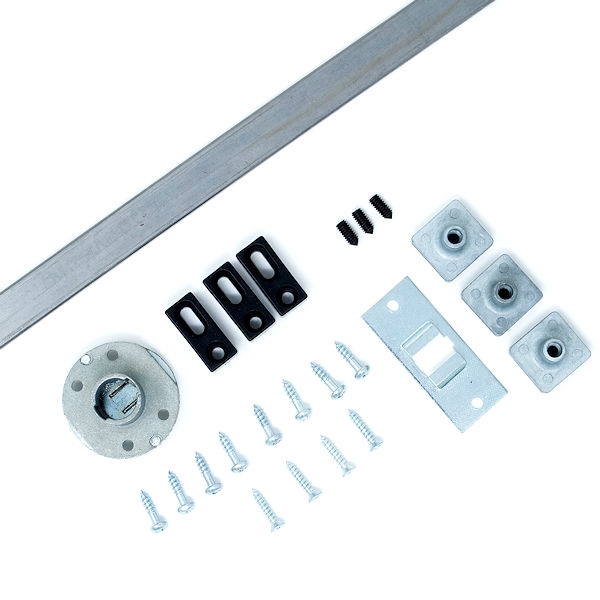

  • PACKAGING – Housing assembly supplied with three set screws for 1/2" projection, three slides, saddle, three plastic stops, and mounting screws. If 1" projection is required, order locking studs separately. Optional plastic trim ring sold separately below - see 1st thumbnail to the left.

D8840 Instruction Sheet
