CCL Cam Lock

Sku: 650 / 651

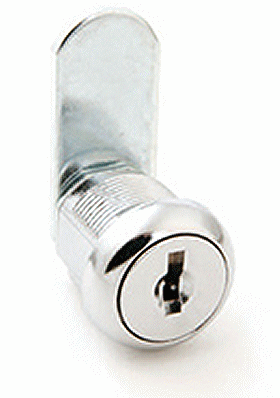

Cam Lock main image
Cam Lock main image
Select Cam Locks:
650 CAM LOCK, 5/8IN, C650S, KEYED ALIKE - 8025 - Includes 2 Keys Details
KEYED ALIKE (KA) = EACH LOCK WILL BE THE SAME LOCK NUMBER.
Cam Lock - 5/8" Length - Keyed Alike to 8025 - Includes 2 Keys

Price: $20.87

23 in Stock. More on the way! Arriving by 11/03/2026.

SKU: 65004-KA-8025

Free shipping not eligible Shipping charges will apply to this item.
SKU: 650 / 651
Product Description
650/651 Series Cam Locks - the 651 series comes in a 7/16" length while the 650 series comes in 5/8", 7/8" and 1 1/8" lengths.
  • Economical die cast cam locks for every day use
  • Various cams, rotations, key pulls and finishes
  • Available keyed alike or keyed different in multiple lengths
  • Material: Zinc die cast cylinders
  • Mechanism: 5 Disc tumbler single bitted mechanism which offers 200 combinations and master keying.
  • Can be used in metal or wood application, easy to mount with supplied barrel nut.
  • Used on drawers, cabinet doors, storage boxes, gun racks, chests, cashboxes, etc.
  • Key Pull 90° rotation may be configured for one or two key pulls.
  • Supplied with selection of two cams, two stop plates, cam screw, trim washer, cam lock washer, spur washer, two keys and spline fillers to convert lock to a one key pull style.
