CCL Tee Lock Handle

Sku: 1001RH
Tee Lock Handle main image CCL 1001H Lock Handle - Dimensions CCL 1001H Lock Handle - Side Dimensions CCL H1 Cam Installed with H3 Holding Plate CCL H2 Cam Installed with H3 Holding Plate

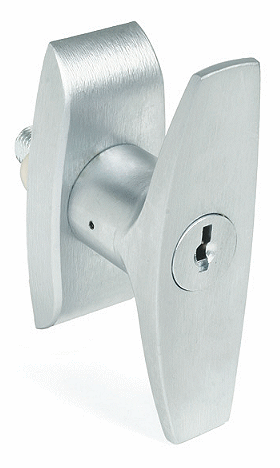

Tee Lock Handle main image
Select Lock Handles:
Tee Lock Handle - 25/32" Spindle - Keyed Alike to CAT45 Details
Tee Lock Handle - 25/32" Spindle - Keyed Alike to CAT45. NOTE: Extra keys may only be purchased with the purchase of a new lock handle.

Price: $42.57

Only 10 left in stock.

SKU: 1001-RH---02650

Free shipping not eligible Shipping charges will apply to this item.

Extra Keys $7.17 each

To add extra keys, 1001-RH---02650 must be in the cart.

SKU: 1001RH
Product Description
Features & Benefits
  • Material: Pressure Cast Handle, Steel Zinc Plated Spindle
  • Operation: Furnished for one, two or three point locking, right or left hand doors, with 90 or 180 degrees rotation (90 degreed RH regularly furnished)
  • Cam Positioning: Square spindle allows cams to be mounted at 12, 3, 6, and 9 o'clock
  • Rods and Guides: Not furnished
  • Spindle Length: Regularly furnished 25/32" and 3-1/2" long (measured from back of escutcheon).
  • Surface Mounting: In addition to mounting shown, handles are available with attaching holes through face of escutcheon for suface mounting - 1-1/2" c. to c., countersunk for #10-32 screws. Screws not furnished.
  • Rekeying: Plug removal access hole added to shank of handle to allow for removal of plug assembly for rekeying purposes. To remove plug, insert key and rotate 90 degrees. Insert small tool (e.g., paper clip) in access hole and depress retainer while pulling key and plug out of handle.
  • Mounting Hole Dimensions: - 1 1/2" from center to center.

NOTE: H1/H2 Cams and the H3 holding plate are not included and may be ordered here or scroll down below. Please see the last two thumbnail images for installation photos of the cams and holder plate.
See More
You may also like these Straight Cams
1 15/32" Straight Cam
CCL H1-CAM
1 15/32" Straight Cam
1 15/32" Straight Cam
View more details
109 in stock
$2.07
Free shipping not eligible Shipping charges will apply to this item.
2 1/2" Straight Cam
CCL H2-CAM
2 1/2" Straight Cam
2 1/2" Straight Cam
View more details
15 in stock
$2.27
Free shipping not eligible Shipping charges will apply to this item.
Holding Plate
CCL H3
Holding Plate
Holding Plate
View more details
22 in stock
$2.07
Free shipping not eligible Shipping charges will apply to this item.
