CompX National Disc Tumbler 1-3/16" Cam Lock

Sku: C8053
Disc Tumbler 1-3/16" Cam Lock main image CompX C8052, C8053, C8054, C8055 Cam Lock with FlexaCam CompX National C7017 SlamCAM - Gallery Image CompX National C8073 Cam Dimensions

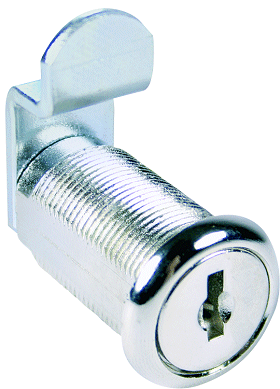

Disc Tumbler 1-3/16" Cam Lock main image
Select Cam Locks:
Cam Lock w/ 2 Keys - Keyed Alike to C205A Details
AKA: HAFELE
Bright Nickel finish - Keyed alike to C205A. NOTE: Extra keys may only be purchased with the purchase of a new lock.

Price: $13.77

Out of stock. More can be ordered. Arriving in 1-4 weeks.
Bulk Pricing
2 units $10.87 ea
5 units $9.87 ea
10 units $9.07 ea

SKU: C8053-C205A-14A

Free shipping not eligible Shipping charges will apply to this item.

Extra Keys $7.17 each

To add extra keys, C8053-C205A-14A must be in the cart.

SKU: C8053
Product Description
  • APPLICATION – For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the 1 13/16" cylinder length.
  • OPERATION – 90° cam turn on all locks. Key removable in both locked and unlocked positions.
  • KEYING – Will key together with all other disc tumbler locks using RO3 (CompX National MPN D8785) key blank. MKKD Locks are keyed to Master Key E41A (CompX MPN D8799) using RO7 (CompX National MPN D8783) key blank.
  • PACKAGING – Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. FlexaCam spacers also supplied - click on first thumbnail at left.
  • Straight cam measures 1 1/2" from center of mounting hole to end.
  • Offset cam measures 1 1/8" from center of mounting hole to end with 11/32" offset.
  • Mounting hole on cam is 1/4"
This lock can be modified to use the SlamCAM self-locking cam - see second thumbnail at left.

C8053 Instruction Sheet
See More
You may also like these Extra Keys
CompX National C8053-EXTRA-KEY
Extra Key for C8053 Cam Lock - CompX National D8785 Key Blank
Extra Key for C8053 Cam Lock - if buying keys for multiple locks, please enter one line item for each lock and describe in the notes section of the cart for which lock the key will be used.
100747 in stock
$7.17
Free shipping eligible Ships free when your cart contains only free-shipping items and totals $35+.
