Name: Pin Tumbler Advantage PLUS+ Drawer Lock
Brand: CompX National
SKU: C8177 C8178 C8179 C8180
Availability: InStock

CompX National Pin Tumbler Advantage PLUS+ Drawer Lock

Sku: C8177 C8178 C8179 C8180

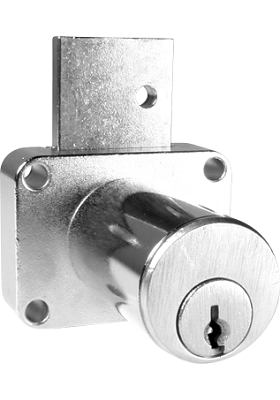

Pin Tumbler Advantage PLUS+ Drawer Lock main image

CompX National C8177 C8178 C8179 C8180 Drawer Lock - Gallery Image

CompX National C817X Avantage Plus Diagram

CompX National C2017-26D Door / Drawer Lock Trim Ring

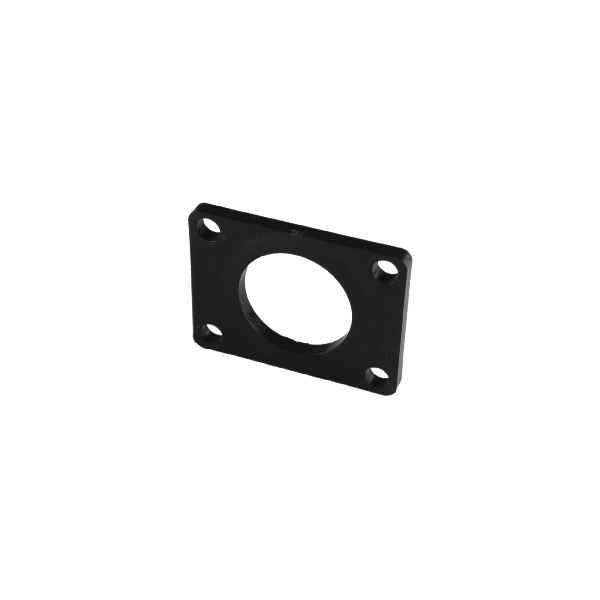

CompX National C2073 Door / Drawer Lock Spacer

Select Desk Drawer / Door Locks:

Pin Tumbler Drawer Lock - 7/8" Cylinder Length - Keyed Different Details

KEYED DIFFERENT(KD) = EACH LOCK WILL BE A DIFFERENT LOCK NUMBER.
7/8" Cylinder Length, Drawer Lock, Dead Bolt Type, Bolt Travel 3/4", Keyed Different

Price: $33.67

Only 12 left in stock.

SKU: C8178-KD-26D

SKU: C8177 C8178 C8179 C8180

Product Description

The PLUS feature allows you to remove the cylinder from our pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" allen wrench from the back to remove the cylinder and plug for re-keying. Please click on the second thumbnail and/or watch the video to see how the PLUS feature works!

APPLICATION – For drawer - surface mounted. Requires 57/64" diameter hole for cylinder.

OPERATION – Key removable in both locked and unlocked positions.

KEYING - Will key together with all other pin tumbler locks using D4291 key blank.

PACKAGING – Supplied with two keys, strike and mounting screws.

If trim ring or spacer is required, please scroll below to order these - refer to the third and fourth thumbnails at left.
