Operation is a 45-degree key turn. Key withdrawal in the locked position only. Spring Bolt is a 5/16" throw type 5 disc tumbler mechanism. The lock includes two single bitted brass keys. This lock is regularly furnished keyed alike. Keyed Differently is available.

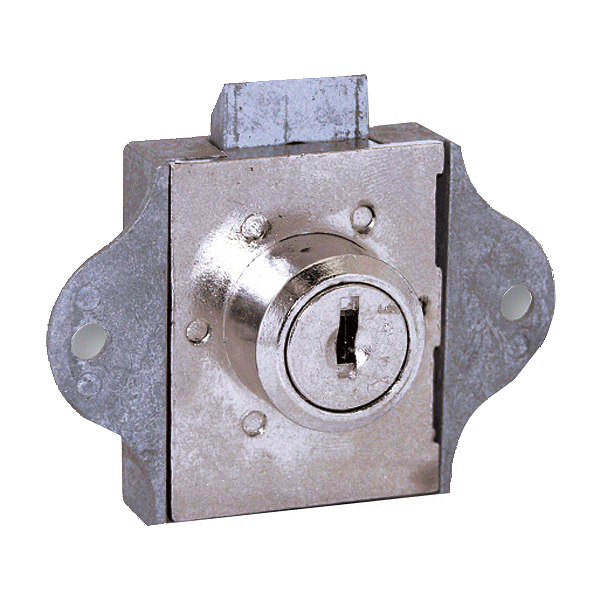

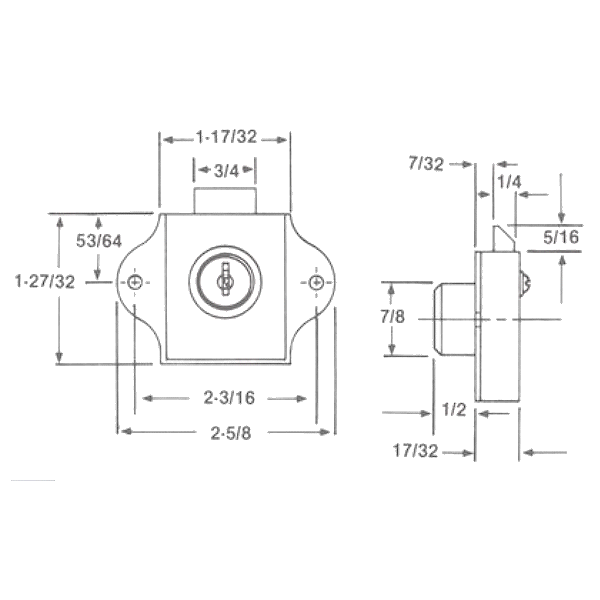

This ESP spring bolt drawer / door lock features key changeable core - i.e. keycode may be changed readily by removing the central core with a special change key. The cylinder is 7/8" diameter Diecast with nickel plate finish. If you would like to re-key these locks you can use the HON E Series. You will need the CKHON Control Key to remove and install the lock cores.
